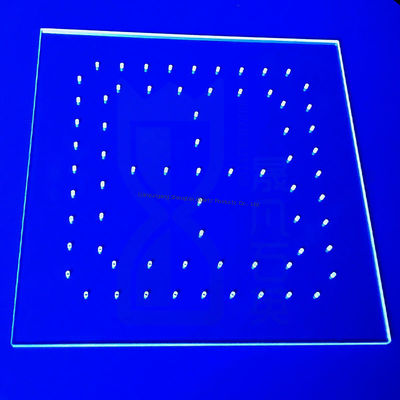

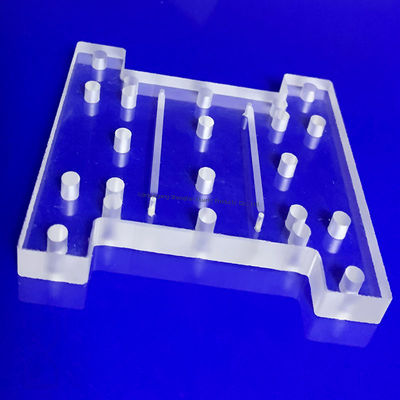

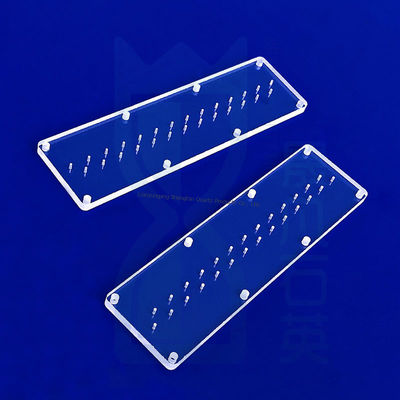

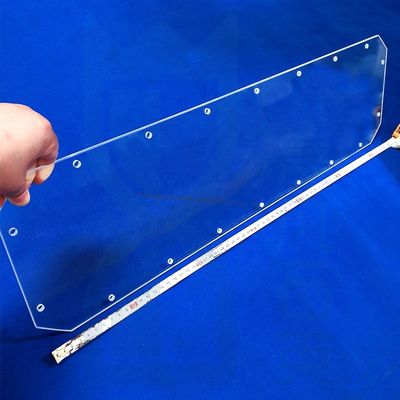

High Temperature Resistant and High Transparency Quartz Glass Plate with Customizable Size for Semiconductor and Optical Applications

10 عدد
MOQ
$1.00/pieces 10-49 pieces
قیمت
High Temperature Resistant and High Transparency Quartz Glass Plate with Customizable Size for Semiconductor and Optical Applications
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
تایپ کنید: صفحه کوارتز را پاک کنید
برنامه: نیمه هادی ، نوری
ضخامت: 0.5-100 میلی متر
شکل: مربع
خدمات پردازش: خم کردن، جوشکاری، پانچ کردن، برش، پرداخت
نام محصول: صفحه کوارتز
مواد: SIO2> 99.99 ٪
کیفیت سطح: 60/40
تراکم: 2.2g/cm3
تمساح کار: 1150
سختی: مورس 6.5
نقطه ذوب کردن: 1750-1850
تحمل اسید: 30 بار از سرامیک ، 150 برابر از فولاد ضد زنگ
اندازه: سفارشی
نقطه بازپرداخت: 1180
بندر: بندر شانگهای و چیندائو
برجسته کردن:

high-temperature-resistant quartz glass sheets,transparent quartz punched plates,factory direct quartz glass plates

,

transparent quartz punched plates

,

factory direct quartz glass plates
اطلاعات اولیه
محل منبع: jiangsu.china
نام تجاری: ShengFan
شماره مدل: qsp-1
پرداخت
جزئیات بسته بندی: حباب پلاستیکی/ ورق فوم پلی استایرن/ کارتن/ پالت چوبی
قابلیت ارائه: 10000 قطعه/قطعه در ماه
توضیحات محصول

Product Description

Shengfan Quartz plate characteristic

*Brand

 shengfanquartz
*SIO2
99.99%
*Density
2.2(g/cm³)
*Degree of hardness moh’ scale
6.6
*Melting point
1732℃
* Working temperature
1100℃
*Annealing point
1180℃
*Softening point
1630℃

Quartz plate:

1. Translucence Quartz Glass thickness 0.3-30mm, OD: 1-500mm
2. Thickness Tolerance: +/-0.1mm
3. Raw Material: Quartz , SiO2: >=99.99%
4. Color : Clear , Translucence.
5. Surface quality :40/20 60/40
6. Transmittance >90%
7.S harpe: Square , Circle, Can make the size and shape according to customer's require.



Support customization:
Their size can designed according your need and can be grinded and polishing the sides according your need!

High Temperature Resistant and High Transparency Quartz Glass Plate with Customizable Size for Semiconductor and Optical Applications 0
Tolerance
±0.01
±0.05mm
±0.1mm
Surface treatment
60/40
40/20

Shape
square amd circle
custom shape
any shape can be customed
Application case
Remote control window
vacuum cup
germicidal lamp

High Temperature Resistant and High Transparency Quartz Glass Plate with Customizable Size for Semiconductor and Optical Applications 1

This product is mainly used in electric light source, electrical appliances (electric), semiconductor, optical communications, military industry, metallurgy, building materials, chemical, machinery, electricity, environmental protection and other fields



Company Introduction
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.
High Temperature Resistant and High Transparency Quartz Glass Plate with Customizable Size for Semiconductor and Optical Applications 2

Our Services & Strength

The company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate
FAQ
Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
