High Purity Clear Fused Quartz Plate with ±0.02mm Tolerance for UV Transmission

1 قطعه
MOQ
negotiable
قیمت
High Purity Clear Fused Quartz Plate with ±0.02mm Tolerance for UV Transmission
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نام محصول: صفحه شیشه ای کوارتز
مادی: SIO2> 99.99 ٪
تراکم: 2.2g/cm3
عبور نور: 92 ٪
سختی: مورس 6.5
تمساح کار: 1150
تحمل: 0.02 میلی متر
نمونه: سفارشی
برجسته کردن:

High Purity Fused Quartz Plate,Clear Quartz Glass Plate,±0.02mm Tolerance Fused Silica Plate

,

Clear Quartz Glass Plate

,

±0.02mm Tolerance Fused Silica Plate
اطلاعات اولیه
محل منبع: چین
نام تجاری: SF
گواهی: ISO9001/SGS/ROHS/CE
شماره مدل: JGS2
پرداخت
جزئیات بسته بندی: حباب پلاستیکی/ ورق فوم پلی استایرن/ کارتن/ پالت چوبی
زمان تحویل: 5-15 روز کاری
شرایط پرداخت: L/C ، T/T
قابلیت ارائه: 10000 قطعه در ماه
توضیحات محصول

Product description:

High Purity Clear Fused Quartz Plate with ±0.02mm Tolerance for UV Transmission 0High Purity Clear Fused Quartz Plate with ±0.02mm Tolerance for UV Transmission 1

3.Shaped quartz plates are produced by providing samples or drawings


Remarks:In addition there are requirements such as tolerance, polish, translucency, etc. can be provided according to demand.
Clear Or Opaque Type Fused Silica Quartz Plate


We are a manufacturer of Quartz glass fused silica plate/sheet .
Size&design: Accept customize according to different diameter , thickness, length or sending your drawin



Application of quartz plate:

Military industrial complex, machinery, metallurgy, printing and dyeing, optical instruments, high temperature sight glasses, fire hole industries such as high temperature and other industries, electric light source equipment, Labortory instrument, chemical apparatus.



Shengfan Quartz plate characteristic:

SIO2 99.9%
Density 2.2(g/cm³)
Degree of hardness moh’ scale 6.6
Melting point 1732℃
Working temperature 1100℃
Max temperature can reach in a short time 1450℃
Visible light transmittance Above 93%
UV spectral region transmittance 80%
Annealing point 1180℃
Softening point 1630℃
Strain point 1100℃



  JGS1(ZS-1) JGS2(ZS-2) JGS3(HS)
Spectral characteristics 180-2500nm 200-2500nm 260-3500nm
The average transmittance 90% 85% 85%
Bubble class 0 2 2
Birefringence 1-2 1-2 1-2
Grain structure 1 2 2
Fringe 1-2 2 2
Uniformity 1-2 2 2
Fluorescence 1 2 2
Radiation Performance Does not change clolor Sight discoloration Change color

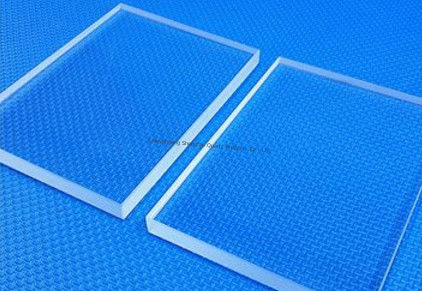

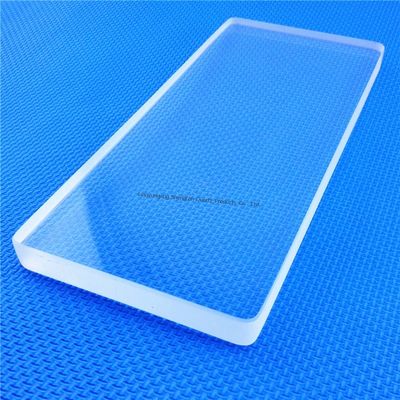

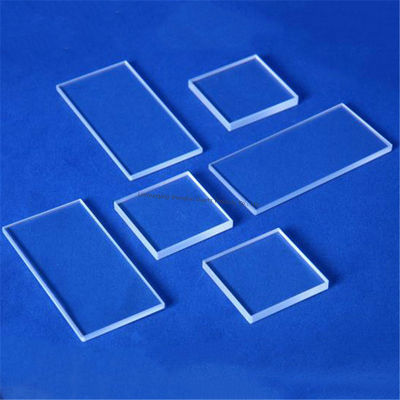

Product Display:

High Purity Clear Fused Quartz Plate with ±0.02mm Tolerance for UV Transmission 2High Purity Clear Fused Quartz Plate with ±0.02mm Tolerance for UV Transmission 3

High Purity Clear Fused Quartz Plate with ±0.02mm Tolerance for UV Transmission 4

Prpduction process:

High Purity Clear Fused Quartz Plate with ±0.02mm Tolerance for UV Transmission 5

Rawmaterial----Single line cutting-----Milling andgrinding machine-----Coarsegrinding----Finegrinding----Polishing----CNCmachining





Company profile:

Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital - Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation.With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.

High Purity Clear Fused Quartz Plate with ±0.02mm Tolerance for UV Transmission 6

FAQ:
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the delivery time?
A:Within 15 days after receiving deposit.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How to proceed an order in your factory?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q5. How do you ship the goods and how long does it take to arrive?
A:DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive.
Airline and sea shipping are also available.
