High Purity Highly Transparent Quartz Glass Sheets For Optical Windows

1 قطعه
MOQ
$2.00/pieces 1-49 pieces
قیمت
High Purity Highly Transparent Quartz Glass Sheets For Optical Windows
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
نوع: صفحه کوارتز شفاف
درخواست: نیمه هادی، نوری
ضخامت: 0.5-100 میلی متر
شکل: مربع
خدمات پردازش: مشت زدن، برش
نام محصول: صفحه شیشه ای کوارتز
مواد: Sio2
Sio2: SIO2> 99.99٪
چگالی: 2.2 گرم بر سانتی متر مکعب
رنگ: شفاف شفاف
دمای کار: 1100 ℃
نقطه ذوب: 1732 ℃
بندر: بندر شانگهای و Qindao
برجسته کردن:

Highly Transparent Quartz Glass Sheets,optical Windows Quartz Glass Sheets,High Purity Quartz Glass Sheets

,

optical Windows Quartz Glass Sheets

,

High Purity Quartz Glass Sheets
اطلاعات اولیه
محل منبع: جیانگسو، چین
نام تجاری: ShengFan
گواهی: ISO9001 ROHS
شماره مدل: QSP-1703
پرداخت
جزئیات بسته بندی: حباب پلاستیکی / ورق فوم پلی استایرن / کارتن / پالت چوبی
زمان تحویل: 10-15 روز
شرایط پرداخت: L/C، T/T
قابلیت ارائه: 10000 قطعه/قطعه در ماه
توضیحات محصول
High quality high purity and highly transparent quartz glass sheets used for optical windows

High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 0

Product Description

Clear Or Opaque Type Fused Silica Quartz Plate
We are a manufacturer of Quartz glass fused silica plate/sheet .
Size&design: Accept customize according to different diameter , thickness, length or sending your drawing.

Shengfan Quartz plate characteristic

*Brand
shengfanquartz
*SIO2
99.99%
*Density
2.2(g/cm³)
*Degree of hardness moh’ scale
6.6
*Melting point
1732℃
* Working temperature
1100℃
*Annealing point
1180℃
*Softening point
1630℃



Density 2.2x103 kg/m3 Hardness 5.5 - 6.5 Mohs' Scale 570 KHN 100
Design Tensile Strength 4.8x107 Pa (N/m2) (7000 psi) Design Compressive Strength Greater than 1.1 x l09 Pa (160,000 psi)SMD 5730
Bulk Modulus 3.7x1010 Pa (5.3x106 psi) Rigidity Modulus 3.1x1010 Pa (4.5x106 psi)
Softening Point 1730°C Annealing Point 1215°C

Setting Information

Color
Transparent
Shape
Circular / Round
Standard
JGS1,JGS2,JGS3
Material
99.99% sio2
Diameter
1-800mm
Thickness
0.2-100mm
Application
Optics quartz windows
Density
 6.6
Light Transmittance
>92%
Hardness
Mose 6.5
Resistance Value
1000 times than ordinary glass

High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 1

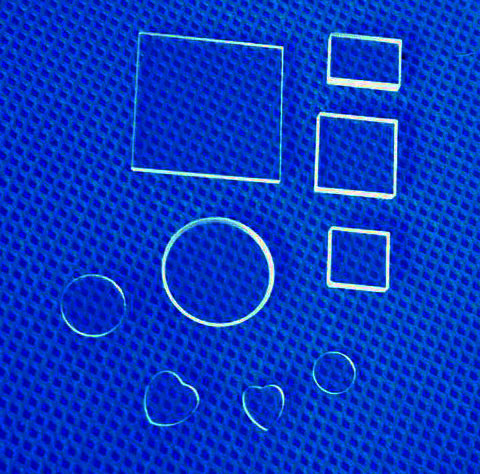

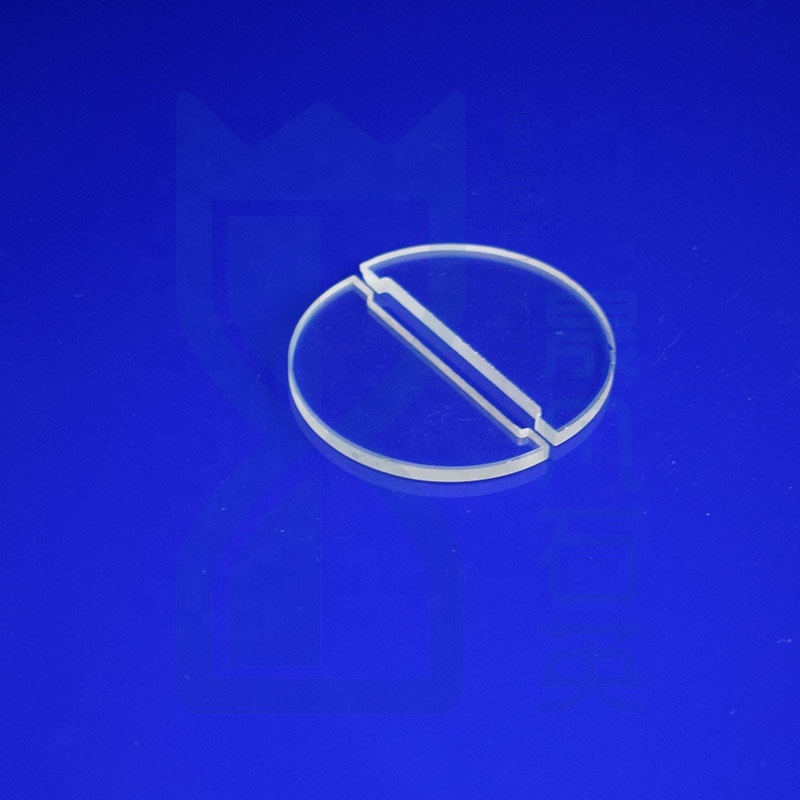

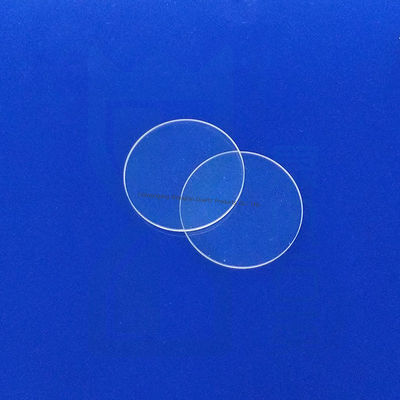

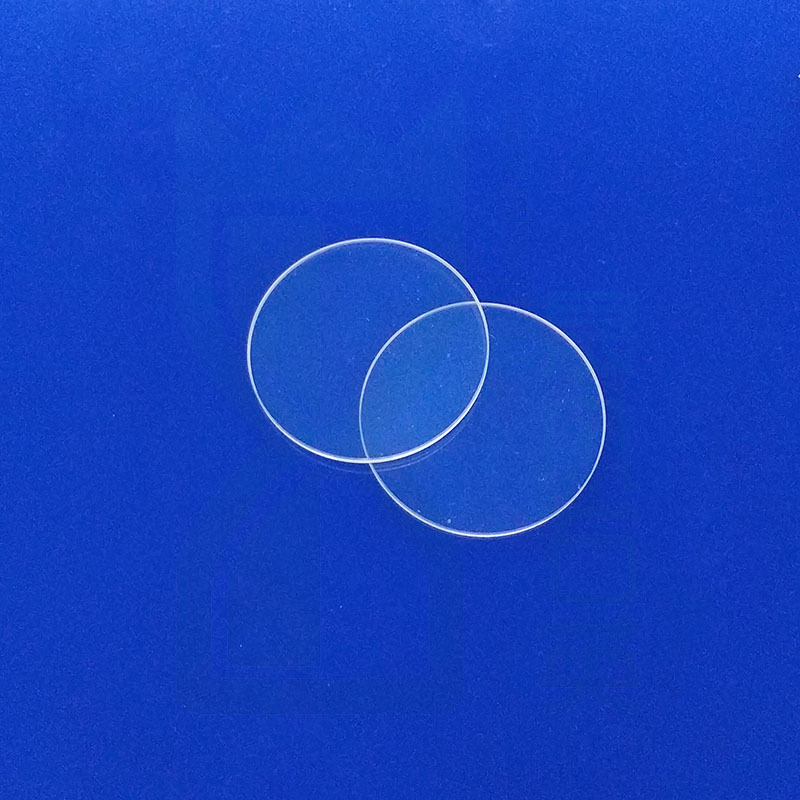

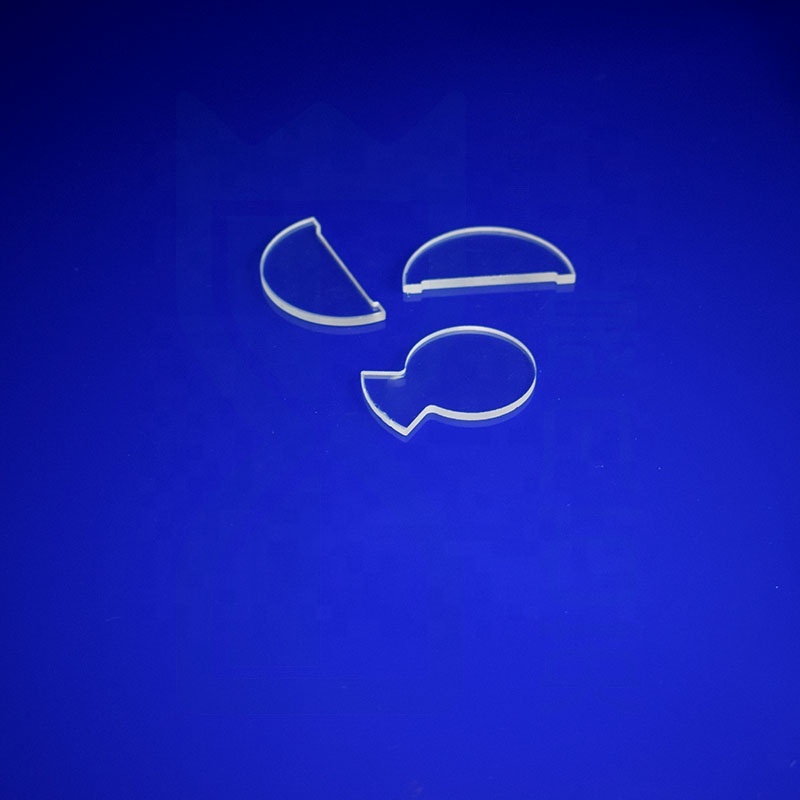

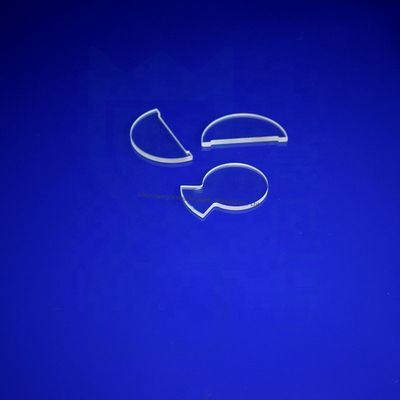

Product Display

High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 2High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 3
High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 4High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 5

【Application scope】:Used to make semiconductors, electric light source device, semi-conductor communication devices, lasers, optical instruments, laboratory instruments, electrical equipment, medical equipment and chemical instruments, chemical industry, electronics, metallurgy and other industries .
【Product advantages】: not easy to be corroded, can withstand high temperature, beautiful appearance, compact structure, easy to operate, strong light transmission, good electrical insulation.
High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 6
Production flow
High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 7
Product uses
High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 8


Packing
High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 9

Company Introduction
High Purity Highly Transparent Quartz Glass Sheets For Optical Windows 10
Lianyungang Shengfan Quartz Products Co., Ltd.
Lianyungang Shengfan Quartz Product Factory is a professional manufacture specialized in research and development of quartz plate,quartz tube,quartz flange,quartz ring,cuvette and quartz instrument. The company is located in China Crystal Capital -Donghai City, Jiangsu Prov., China. 70 km far from Lianyungang port, convenient transportation. Covering an area of 1000 square meters,we now have over 30 employees,an annual sales figure exceeding USD 5.2 million. With the philosophy of Technology Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to estabinternational enterprise with standard and sustainable operation capability. Orientation, Quality First,Integrity and Responsibility,Sustainable Operation, the company dedicates to establish an international enterprise with standard and sustainable operation capability.

Our Services & StrengthThe company adhere to the integrity of business, experience, reasonable price, quality assurance, to provide excellent after-sales service, we sincerely welcome customers to come to negotiate

FAQ

Q1. Can I have a sample order? A: Yes, we welcome sample order to test and check quality. Q2. What about the delivery time? A:Within 15 days after receiving deposit. Q3. Do you have any MOQ limit? A: Low MOQ, 1pc for sample checking is available Q4. How to proceed an order in your factory? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production. Q5. How do you ship the goods and how long does it take to arrive? DHL, UPS, FedEx or TNT are optional for small order. It usually takes 3-5 days to arrive. Airline and sea shipping are also available.
