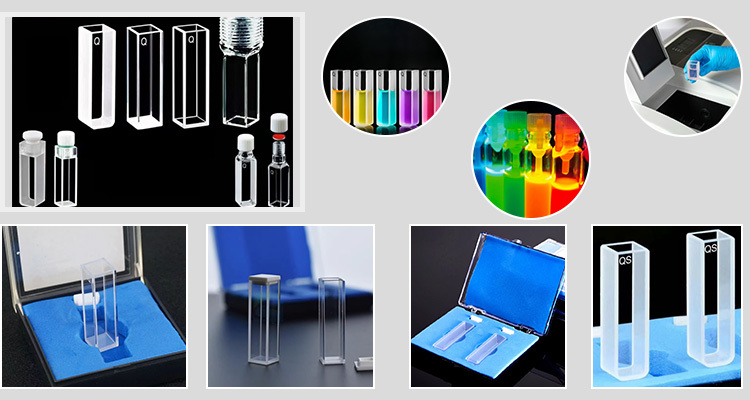

High Purity Quartz Cuvette for Laboratory Spectroscopy-Amy

1. Project Background

A professional biochemical testing laboratory focused on environmental water quality detection and pharmaceutical ingredient analysis faced unstable test data and poor experimental repeatability. The laboratory previously used ordinary glass cuvettes and low-quality fused quartz cuvettes for UV-visible spectrophotometer testing.

Ordinary glass cuvettes cannot transmit ultraviolet light, making them completely unavailable for UV band detection. Meanwhile, inferior quartz cuvettes contain impurities, bubbles and surface scratches, resulting in high light absorption, serious optical deviation and large data fluctuation in low-concentration sample testing. To solve systematic test errors and meet high-precision experimental standards, the laboratory customized standard high-transmittance quartz cuvettes.

2. Customer Requirements & Technical Specifications

The customer mainly conducts trace organic detection, water quality COD detection and pharmaceutical solution absorbance testing, with strict requirements on optical performance and consistency of consumables.

Core Requirements:

• Material: UV-grade high-purity fused quartz
• Light path: Standard 10mm
• Effective transmittance: ≥90% in 200nm–2500nm full band (UV & visible & near-infrared)
• Optical quality: No bubbles, no stripes, no surface scratches, high flatness polishing
• Performance: Acid and alkali resistant, solvent resistant, low blank absorbance, consistent batch optical performance
• Application: UV-Vis spectrophotometer routine testing, scientific research experiment data recording

3. Product Design & Material Advantages

3.1 Material Comparison

High-purity quartz cuvette: Excellent full-band spectral transmittance, ultra-low self-absorption in ultraviolet region. It features stable optical performance, strong corrosion resistance, no reaction with conventional chemical reagents, and will not produce light attenuation or color deviation after long-term use.

Glass cuvette: Strong absorption of ultraviolet light, only applicable for visible light detection, unable to complete UV experimental analysis.

Ordinary low-quality quartz cuvette: Affected by material impurities and rough polishing, it causes light scattering, resulting in higher blank value and inaccurate detection results.

3.2 Processing Technology

• Adopts high-purity fused quartz raw materials with strict impurity control;
• Double-sided high-precision optical fire polishing, smooth and pore-free surface;
• Strict batch screening to ensure consistent wall thickness and light path accuracy;
• Integral forming process, good pressure resistance and thermal stability, adaptable to conventional room temperature and constant temperature experimental environments.

4. Experimental Comparison & Application Results

4.1 Test Conditions

4.2 Test Data & Performance

• Glass cuvette: Cannot detect UV band data normally, serious light loss, invalid experimental data.
• Ordinary low-quality quartz cuvette: High blank absorbance, parallel test data deviation exceeds 8%, poor repeatability, easy to cause misjudgment of sample concentration.
• High-purity quartz cuvette: Ultra-low blank value, light transmittance stable above 91% in UV band, parallel test data deviation controlled within 2%, excellent experimental repeatability and data authenticity.

4.3 Long-Term Use Performance

After continuous 3-month batch experiment use, the customized quartz cuvettes show no surface corrosion, no light transmittance attenuation, no fogging or scratch wear. The batch consistency is stable, which fully meets the laboratory’s long-term scientific research and daily detection work needs.

5. Common Usage Problems & Optimization Solutions

• Optical surface scratch: Hard wiping with ordinary paper easily causes scratches. Optimized solution: Use lens paper for cleaning to protect the optical surface.
• Residual liquid interference: Residual sample will affect absorbance. Standardized cleaning and drying process effectively eliminates residual interference.
• Confusion of quartz and glass cuvettes: Unified UV quartz cuvettes are used in all UV experiments to avoid experimental errors caused by material mismatch.

6. Benefit Analysis

Research Value: Effectively eliminates optical errors caused by consumable materials, ensures the accuracy and credibility of experimental data, and supports the writing of scientific research papers and experimental result verification.

Operational Value: Stable batch quality reduces repeated testing and sample waste, greatly improves laboratory detection efficiency, and is suitable for large-batch routine testing and scientific research project experiments.

Economic Value: Although the unit price is higher than ordinary glass cuvettes, high-purity quartz cuvettes have long service life, stable performance and no frequent replacement, which reduces long-term laboratory consumable costs.

7. Conclusion

Quartz cuvettes are core optical consumables for ultraviolet and full-spectrum spectroscopic detection. High-purity polished quartz cuvettes solve the problems of low transmittance, large data deviation and poor repeatability of ordinary consumables. They are widely applicable to water quality detection, biochemical analysis, pharmaceutical testing, environmental monitoring, university scientific research and other scenarios. Customized specifications such as different light paths, sealed types and micro-volume types can be provided to meet diverse experimental and testing requirements.
