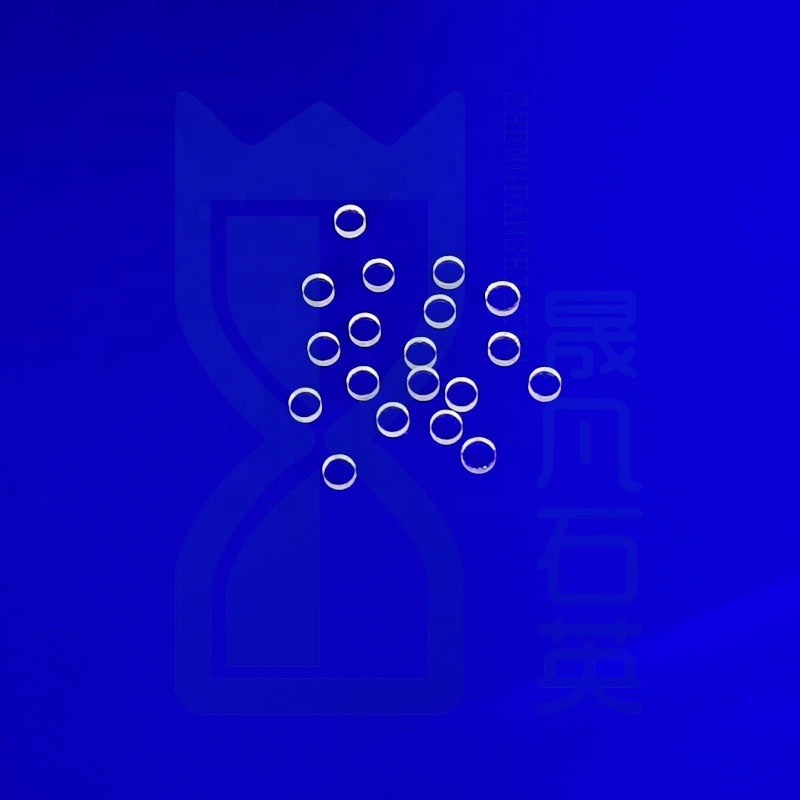

Customized High purity quartz window plates for high-end and precise laser equipment-Mia

Customer Background

The client for this cooperation is a professional and high-end laser equipment manufacturing enterprise in the Midwestern United States. Their products are widely used in high-precision industrial scenarios such as semiconductor precision processing and high-end medical device processing, targeting the overseas high-end industrial market.
The core advantages of the client's equipment lie in its high stability, high precision, and long-term continuous operation. They have high requirements for the light transmittance, high-temperature resistance, and laser damage resistance of the core optical components. Previously, due to issues such as long supply lead times, delayed after-sales responses, and high comprehensive procurement costs, the client urgently needed to find a high-quality partner that could meet international quality standards, be quickly customized, and deliver efficiently.

II. Customer Core Pain Points

The original quartz window plates provided by the client exposed several key problems during the batch application and long-term operation of the equipment, directly affecting the equipment's accuracy, service life, and production efficiency. The core pain points are concentrated in five dimensions:
1. Insufficient laser tolerance: The original window plates have a low threshold for laser damage resistance, which makes them unsuitable for ultra-fast and high-power laser equipment. During long-term continuous operation, they often experience light spot distortion, local aging, and micro-cracks, failing to meet the requirements of semiconductor and precision component processing.
2. Poor temperature stability, high equipment failure rate: During long-term operation of the laser equipment, continuous high temperatures are generated. The ordinary quartz window plates have insufficient thermal stability, and their light transmittance significantly decreases in high-temperature environments, causing thermal deformation and affecting production efficiency.
3. Low customization adaptability: The client's new precision laser equipment is of a miniaturized and integrated structure. They have special requirements for the thickness tolerance, flatness, coating parameters, and edge chamfering of the window plates.

III. Customized Solution

In response to the precise working conditions and mass production requirements of the high-end laser equipment for the American client, we provide a fully customized quartz window plate integrated solution based on JGS1 high-purity fused quartz substrate. We combine the laser wavelength, power, and operating conditions of the client's equipment to offer a full customization solution for the quartz window plates. We cover all dimensions of material selection, process optimization, parameter customization, quality control and delivery, and overseas technical support to precisely address the client's core pain points.
1. High-end substrate selection, enhancing core performance: We select high-uniformity and high-purity ultraviolet fused quartz materials, with extremely low impurity content, significantly improving the laser transmittance and laser damage threshold. They can be long-term adapted to high-power and ultra-fast laser continuous operation, effectively avoiding light spot distortion and optical path deviation problems. The substrate also has excellent thermal stability and low expansion coefficient, capable of withstanding high-temperature operation and preventing thermal deformation, suitable for long-term high-temperature operation of the equipment.
2. Precision process customization, matching non-standard parameters: According to the customer's new equipment's integrated structure requirements, we precisely customize the thickness, outer diameter, tolerance, and flatness parameters of the window plates. We strictly control the thickness tolerance to ≤ ±0.02mm, and the flatness and parallelism to reach the high-end optical standards. We optimize the edge polishing and chamfering processes, eliminating chipping, burrs, and dust accumulation in assembly; and we customize anti-reflection coatings according to the laser transmission requirements, specifically enhancing the transmittance of the corresponding wavelengths and reducing light loss.

IV. Implementation Results and Data Value

After the customized quartz window plates were implemented in the client's equipment for mass production and terminal market applications, they comprehensively solved the original pain points, achieving four core values for the client: quality improvement, efficiency increase, cost reduction, and stable production. The quantified results are clear and verifiable:
1. Significant improvement in equipment accuracy and stability: The laser transmittance uniformity of the quartz window plates has been significantly optimized, light loss has been reduced, and there are no light spot distortions or optical path deviations during long-term operation of the equipment. The processing accuracy drift problem has been completely resolved, and the terminal product processing yield has increased to over 99%, fully meeting the requirements of high-precision processing scenarios such as semiconductor and aerospace.
2. Product lifespan doubles, failure rate drops significantly: The product's anti-aging, high-temperature resistance, and damage resistance capabilities have been comprehensively enhanced. The stability of the equipment's continuous operation has greatly improved, the lifespan of the window sheet has been extended, and the cumbersome procedures of frequent disassembly and replacement, as well as optical path calibration, have been eliminated.
